Architecting EduPlatform AI: Designing a B2B Multi-Model Socratic Intelligence & Formative Examination Infrastructure

Executive Overview & Research Motivation

The modern educational landscape faces a systemic dilemma: commercial enterprise EdTech platforms cost tens of thousands of dollars in annual licensing fees, while generic consumer AI tools (such as standard chat interfaces) function as direct-answer engines that encourage unearned answer copying rather than genuine pedagogical mastery.

What began as my Final Year Research Project (FYP) at the University of Sindh, Jamshoro — investigating neuro-symbolic automated grading and longitudinal error quotients — has evolved into EduPlatform AI (AI Powered Education Platform): an all-in-one, licensable B2B academic intelligence ecosystem.

Designed from first principles to be deployed by primary, secondary, college, and university institutions, EduPlatform AI democratizes enterprise-grade educational tools: combining multi-model Socratic inquiry, adaptive timed exam synthesis, 4-tier formative rubric autograding, and semantic plagiarism scanning under a unified 72-route institutional architecture.

Live Production Platform: https://fyp-f8xk.vercel.app/
Source Repository: https://github.com/mhusman123/FYP

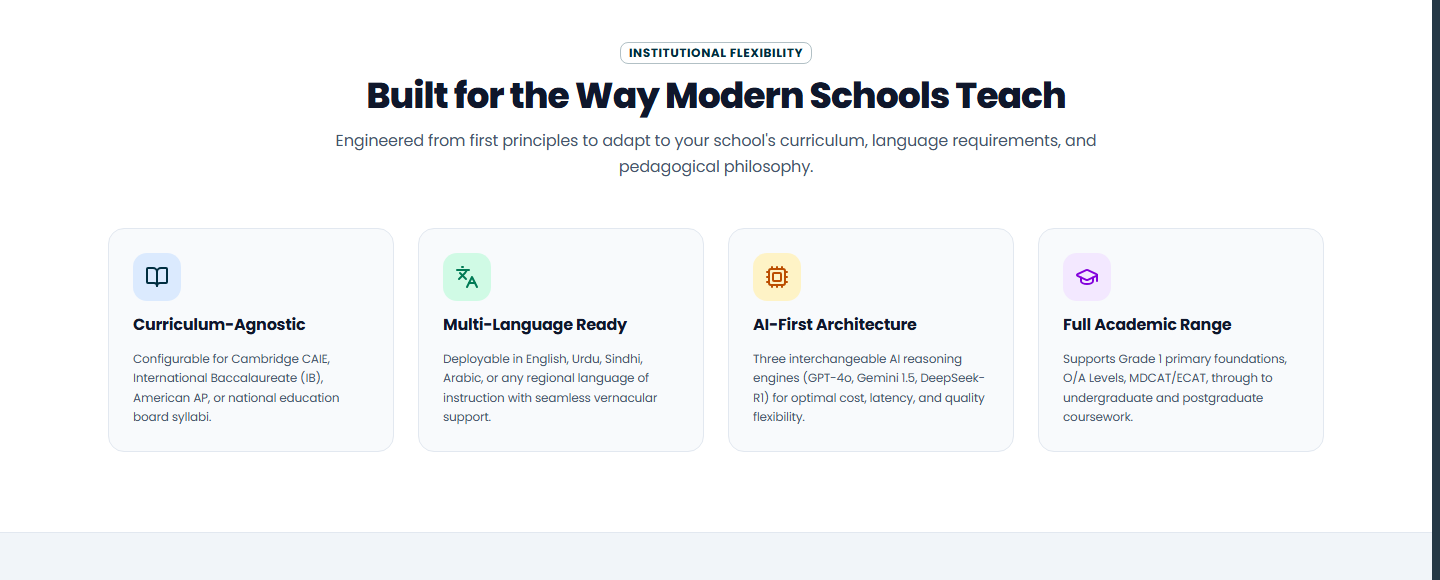

Institutional Adaptability & Curricula Matrix

A foundational research requirement for an enterprise-ready educational platform is curriculum agnosticism. Educational institutions operate under widely differing syllabi, examination standards, and grade structures. EduPlatform AI decouples pedagogical intelligence from curriculum-specific schemas through dynamic syllabus adapters.

Academic Tier Coverage:

| Academic Tier | Target Audience | Core Platform Capabilities | | :--- | :--- | :--- | | Primary & Elementary (Grades 1–5) | Young Learners & Elementary Teachers | Visual foundational exercises, vocabulary builders, gamified badge achievements, and curiosity prompts. | | Middle & Secondary (Grades 6–10 / Matric) | High School Students & Tutors | Socratic STEM problem solving, chapter summaries, science lab guides, and homework hints. | | College & Intermediate (O/A Levels & FSc) | College Students & Lecturers | Timed practice arenas (20, 35, 50 questions), and differential calculus derivations. | | Undergraduate (BSc/BS/BE) | University Students & TAs | Algorithm complexity analysis (Big-O), Python/JS syntax debugging, and autograding with rubric feedback. | | Postgraduate (MS/MPhil) | Master's Scholars & Advisors | Advanced topic synthesis, technical essay evaluation, literature surveys, and originality/plagiarism checks. | | Faculty & Administrators | Teachers, Professors & Deans | Automated grading queues, class performance analytics, grade adjustment reviews, and question bank generation. |

The architecture natively supports Cambridge CAIE (O/A Levels), International Baccalaureate (IB), Edexcel, American AP, and National/Provincial boards (BISE / FBISE). Furthermore, its localization layer delivers seamless vernacular support across English, Urdu (اردو), and Sindhi (سنڌي) with optimized Right-to-Left (RTL) typography.

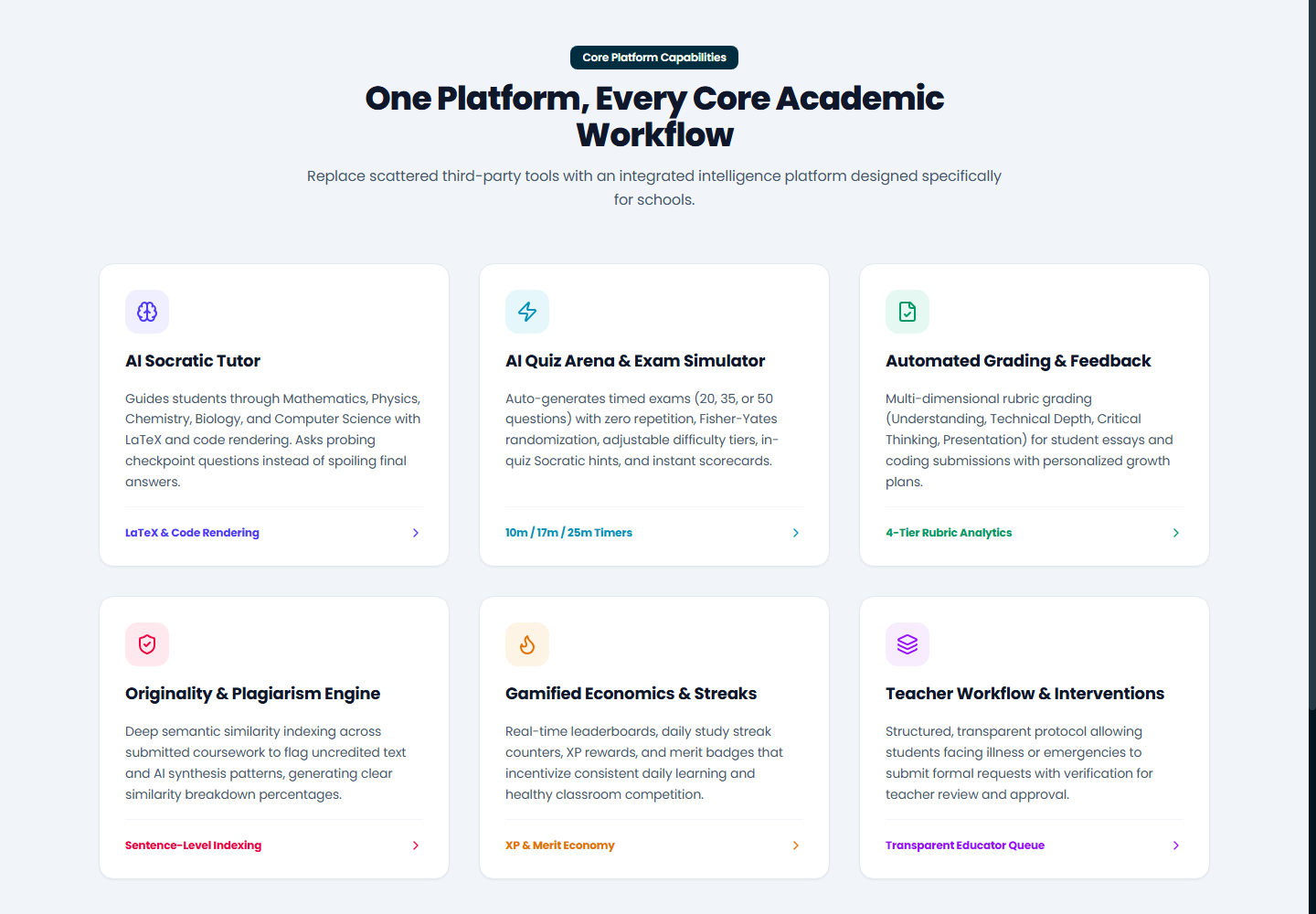

The 6 Core AI Academic Workflows

EduPlatform AI unifies scattered third-party EdTech point solutions into six tightly integrated, mathematically rigorous workflows:

1. Multi-Model Socratic AI Tutor (/ai-tutor)

Standard instruction-tuned LLMs immediately collapse the problem-solving journey by outputting complete answers. In contrast, the EduPlatform Socratic engine enforces scaffolded cognitive inquiry with zero spoilers.

Formalized Socratic State Machine:

At dialogue turn t, given student input x_t and historical context H_{t-1}, the system generates guidance (q_t, hint_t) rather than final answer A:

P(output = A | H_{t-1}, x_t) → 0
Entropy(A | q_t) > τ_cognitive

The model identifies the student's exact point of breakdown in the derivation graph and formulates a diagnostic checkpoint prompt, requiring active synthesis before proceeding.

Architectural Highlights:

• Multi-Model Dynamic Routing:
  • Google Gemini 1.5 Flash: Low-latency streaming (< 800ms time-to-first-token) via Server-Sent Events (SSE).
  • DeepSeek-R1: Dedicated chain-of-thought (CoT) reasoning for step-by-step symbolic mathematics, calculus proofs, and algorithmic proofs.
  • OpenAI GPT-4o-mini: Qualitative synthesis, language parsing, and conversational humanities tutoring.
• Scientific & Mathematical Typesetting: Complete KaTeX / LaTeX rendering for differential equations, organic chemistry structures, and multi-language programming code blocks.

2. Adaptive Timed Quiz Arena & Exam Simulator (/quiz-generator)

To prepare students for competitive entrance exams (CAIE, MDCAT, ECAT, SAT), the Quiz Arena generates timed examination sessions parameterized by dynamic difficulty tiers.

3-Tier Timed Presets:

• 🏃 Quick Sprint: 20 Questions (Time Limit: 10 Minutes)
• 📋 Standard Assessment: 35 Questions (Time Limit: 17 Minutes)
• 🏆 Comprehensive Exam: 50 Questions (Time Limit: 25 Minutes)

Zero-Collision Randomization via Fisher-Yates Shuffling:

To eliminate question repetition and distractor sequence memorization across consecutive attempts, question arrays are shuffled using an in-place Fisher-Yates algorithm:

function fisherYatesShuffle<T>(array: T[]): T[] {
  const result = [...array];
  for (let i = result.length - 1; i > 0; i--) {
    const j = Math.floor(Math.random() * (i + 1));
    [result[i], result[j]] = [result[j], result[i]];
  }
  return result;
}

This guarantees an unbiased uniform distribution over all n! permutations:

P(π) = 1 / n!    ∀ π ∈ S_n

Dynamic Item Response Theory (IRT) Scaling:

Each question item j has an estimated discrimination parameter a_j and difficulty parameter b_j. The probability of a student with latent ability θ_i answering correctly is modeled via a 2-Parameter Logistic (2PL) function:

P(Y_ij = 1 | θ_i, a_j, b_j) = 1 / (1 + exp(-a_j * (θ_i - b_j)))

The scorecard dynamically recalculates θ_i post-exam, producing instant mastery radar graphs across curriculum sub-topics.

3. 4-Tier Formative Rubric Autograder (/autograding)

Traditional automated grading relies on naive exact-match string comparisons or binary pass/fail unit tests. EduPlatform AI implements a formative neuro-symbolic rubric evaluation model that assesses subjective essays, mathematical solutions, and source code.

The 4-Tier Evaluation Vector:

Submissions are evaluated against four orthogonal objective criteria:

1. Conceptual Understanding (w_1 = 0.40): Comprehension of foundational domain theorems, principles, and problem boundaries.
2. Technical & Analytical Depth (w_2 = 0.30): Mathematical rigor, algorithmic time/space complexity, syntax validity, and edge-case execution.
3. Critical Thinking & Inquiry (w_3 = 0.20): Novelty of formulation, justification of assumptions, and comparative trade-off reasoning.
4. Presentation & Structural Clarity (w_4 = 0.10): Cohesion of prose, LaTeX notation cleanliness, code modularity, and documentation.

The composite formative score S_final is defined as:

S_final = ∑ (w_k * r_k)    for k = 1 to 4, where r_k ∈ [0, 100]

Actionable Revision Roadmaps & Educator Verification:

Before any score is permanently recorded, the autograder generates a structured Growth Action Roadmap highlighting 3 specific actionable revision steps for the student. Teachers have a 1-click override verification queue with manual remark attachments to preserve complete human oversight.

4. Deep Semantic & Syntactic Originality Engine (/plagiarism)

Academic integrity in the generative AI era requires analyzing both verbatim plagiarism and latent AI-generated paraphrasing:

• Syntactic k-Shingle Indexing: Computes Jaccard similarity across n-gram token windows to identify verbatim cross-student copying.
• Dense Vector Embedding Projections: Embeds submission paragraphs into high-dimensional semantic vector spaces. Cosine similarity between student vector u and corpus vector v is computed as:

CosineSimilarity(u, v) = (u · v) / (||u||_2 * ||v||_2)

• Zero Public LLM Storage Guarantee: Compliant with international student privacy protocols (FERPA/GDPR), student submissions are analyzed via ephemeral memory buffers and never retained for public model fine-tuning.
• Sentence-Level Heatmaps: Visual color-coded breakdowns distinguish between valid citations, standard technical definitions, and uncredited matches.

5. Gamified Academic Economy & Behavioral Economics (/leaderboard)

Cognitive psychology demonstrates that distributed, daily micro-learning outperforms cramming before examinations. EduPlatform AI utilizes behavioral incentive loops to foster sustained discipline:

• Daily Study Streak Multiplier: Dynamic multipliers reward continuous consecutive active days, reinforced by anti-cheat streak validation algorithms.
• Verifiable Digital Badges: Cryptographically verifiable achievement badges for academic milestones (Calculus Master, STEM Pioneer, Algorithm Artisan, Physics Ace).
• Multi-Tiered Leaderboards: Real-time cohort rankings organized by classroom, grade level, and campus.

6. Educator Telemetry & Compassionate Protocols (/dashboard, /grade-requests)

School leadership requires actionable operational intelligence rather than post-mortem grade reports:

• Real-Time Cohort Mastery Telemetry: Continuous tracking of curriculum completion rates and automatic early-warning flags for students falling below mastery thresholds.
• Compassionate Grade Adjustment Queue (/grade-requests): A formalized, auditable digital workflow allowing students facing verified medical or personal emergencies to submit documented extension requests for administrator review.

72+ Compiled Production Routes & Architecture

The application encompasses 72 production-compiled routes organized across modular functional clusters:

[ Client Browser: Desktop & Mobile ]
         │ (Next.js 15 App Router)
         ▼
[ Next.js SSR & Server Actions ]
   ├── Frontend Layer: Tailwind CSS, ShadCN UI, KaTeX Rendering, NextAuth.js
   ├── API & Controller Layer:
   │     ├── /api/ai/socratic-tutor
   │     ├── /api/ai/quiz-generate
   │     ├── /api/ai/autograde & /insights
   │     └── /api/courses, /assignments, /grades
   ├── Multi-Model AI Gateway:
   │     ├── Google Gemini 1.5 Flash (Low-Latency SSE Stream < 800ms)
   │     ├── DeepSeek-R1 (Complex Derivations & STEM Proofs)
   │     └── OpenAI GPT-4o-mini (Formative Rubrics & Humanities)
   └── Persistence Layer:
         ├── Prisma ORM 6.16 Client
         ├── PostgreSQL / SQLite Database
         └── UploadThing Document Storage

Route Clusters:

1. Public & Institutional Portals: /, /home, /academic-excellence, /admissions-and-fees, /our-school, /our-school/facilities, /our-school/primary-education, /our-school/secondary-education, /our-school/sixth-form.
2. Student & Educator Applications: /dashboard, /courses, /courses/[id], /assignments, /assignments-enhanced, /autograding, /badges, /grade-requests, /grading, /leaderboard, /plagiarism, /settings, /students, /submission-feedback.
3. AI Learning Engines: /ai-hub, /ai-tutor, /quiz-generator.
4. Authentication: /auth/signin, /auth/signup, /auth/error.
5. Backend REST APIs: /api/ai/*, /api/auth/*, /api/courses/*, /api/assignments/*.

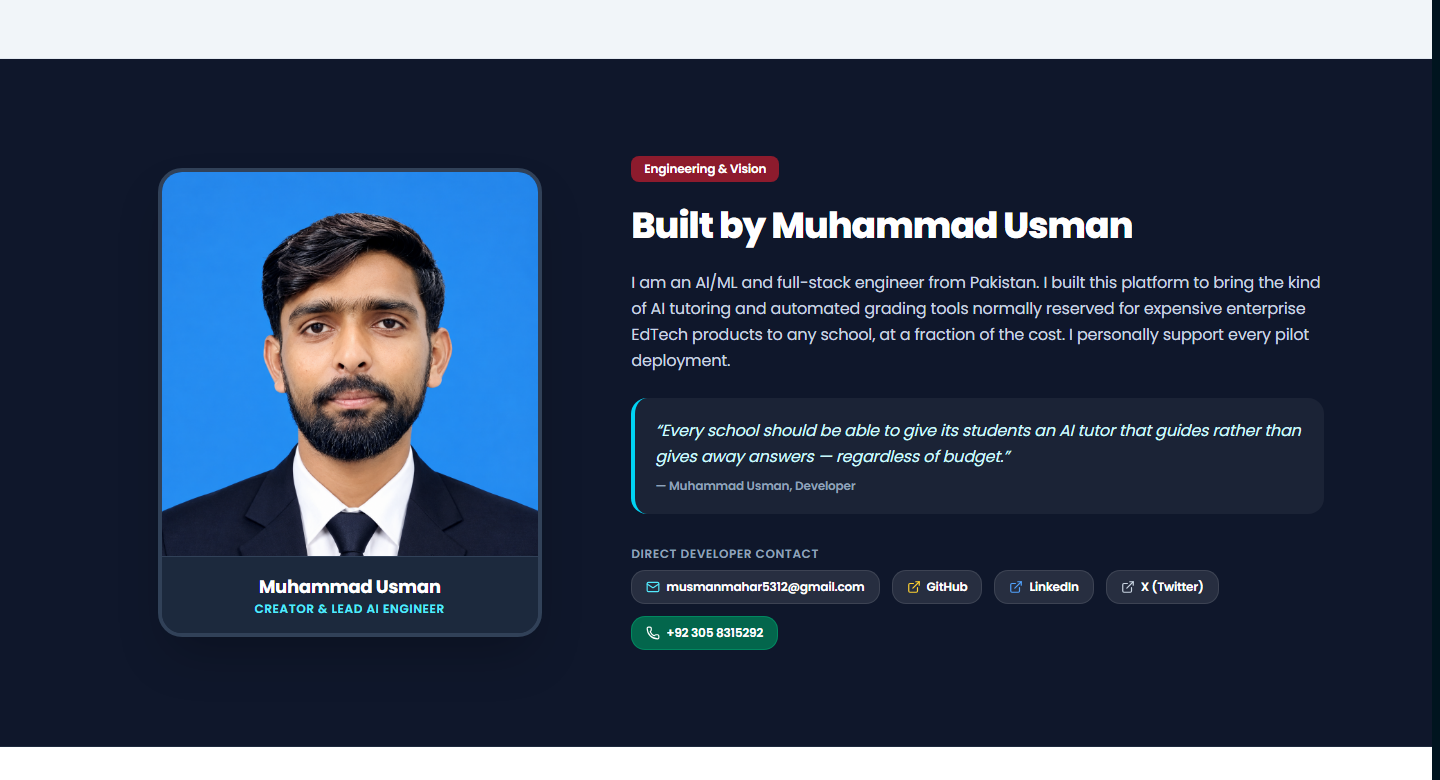

Creator & Engineering Leadership

EduPlatform AI was designed, engineered, and deployed by Muhammad Usman as a mission-driven platform to provide high-impact educational AI tools to schools and universities worldwide.

“Every school should be able to give its students an AI tutor that guides rather than gives away answers — regardless of budget.”
— Muhammad Usman, Creator & Lead AI Engineer

Connect & Collaborate:

• 🌐 Live Application: https://fyp-f8xk.vercel.app/
• 💻 Source Code: https://github.com/mhusman123/FYP
• 📧 Direct Email: musmanmahar5312@gmail.com
• 💼 LinkedIn: linkedin.com/in/muhammad-usman-9464b5247
• 🐦 X (Twitter): @md_usman73
• 💬 WhatsApp: +92 305 8315292

Summary & Future Roadmap

By combining neuro-symbolic Socratic pedagogy, stochastic zero-collision exam simulation, 4-tier formative autograding, and curriculum-agnostic white-label infrastructure, EduPlatform AI establishes that enterprise-level AI capabilities can be delivered with architectural elegance and computational efficiency.

The next development phase includes integrating real-time voice-driven Socratic dialogues, expanding local offline LLM quantizations (via GGUF/Ollama) for bandwidth-constrained rural schools, and automated CAIE/BISE past-paper diagnostic indexing.
